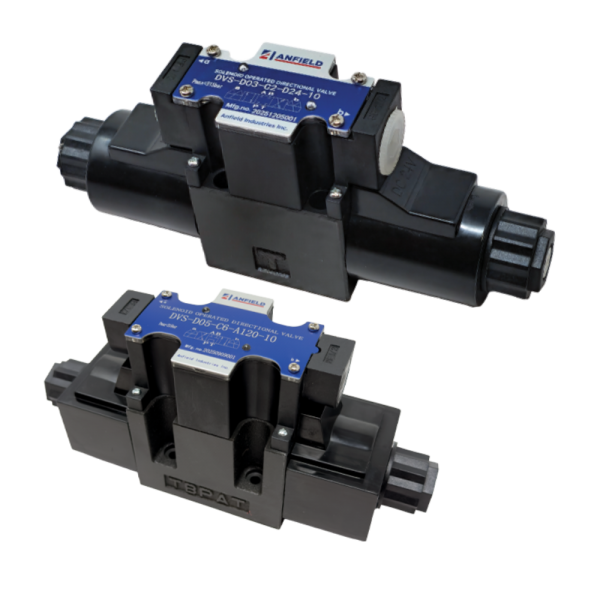

4/2 and 4/3 Directional Control Valve, Solenoid Operated; 315 bar (4568 psi)

Description

Anfield DVS series solenoids actuated directional control valves are used to manage the direction of flow in hydraulic circuits. NFPA D03, D05 industry-standard subplate mountable. The DVS valves are rated for 4568 psi (315 bar) and used for low-to-medium flow applications with the D03 size suited for 8-15 gpm, while D05 valves are larger, supporting higher flow rates typically up to 30 gpm, in both cases depending on the spool type. Moving core immersed in hydraulic oil provides quiet operation.



Features

•     Direct acting, directional control valve with subplate mounting interface acc. to NFPA D03 / NG6 / CETOP 03 and NFPA D05 / NG10 / CETOP 05
•     DVS-D03 & D05 are four chamber design.
•     Used for pressures up to 4568 psi (315bar) and flows up to 16.6 gpm (63 l/min). (depending on the spool type)
•     Available in single or double solenoid.
•     DVS-D03 & D05 valves can be ordered with conduit box or DIN connectors.
•     Manual override standard.
•     Available with a wide range of spools.
•     Soft-shift spool available. (Contact Anfield)
•     Available with DC and AC solenoids from stock.
•     Available option of the R120 solenoid, an AC power supply solenoid using a built-in rectifier bridge providing the advantage of AC current faster activation speed with the precision, lower noise, and longer lifespan of a DC solenoid.
•     UNC mounting bolt kits are standard
•     Quick Turnaround – Common configurations and core products delivered from stock and conversions of non-core products delivered in days

Application

•     Mobile & Transport Equipment
•     Industrial / Manufacturing
•     Agriculture
